Part Number : OPA2613IDR
Manufacturer : Rochester Electronics
Description : OPA2613IDR datasheet pdf and Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps product details from Rochester Electronics stock available at Rozee
Lifecycle : New from this manufacturer
Delivery : DHL、UPS、FedEx、Registered Mail
Payment : T/T Paypal Visa MoneyGram Western Union
More Information : OPA2613IDR More Information
ECAD : Request Free CAD Models
Pricing(USD) : $2.63
Remark : Manufacturer: Rochester Electronics. Rozee is one of the Distributors. Wide range of applications.
Width : 3.91 mm
Length : 4.9 mm
Bandwidth : 125 MHz
Slew Rate : 70 V/µs
Case/Package : SOIC
Settling Time : 40 ns
Number of Pins : 8
Input Bias Current : 14.5 µA
Min Supply Voltage : 5 V
Number of Circuits : 2
Gain Bandwidth Product : 118 MHz
Operating Supply Current : 12 mA
Max Operating Temperature : 85 °C
Input Offset Voltage (Vos) : 1 mV
Common Mode Rejection Ratio : 85 dB
Products Category : Integrated Circuits (ICs) - Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Qty : 6381 In Stock
Applications : Tablets Data center & enterprise computing
Height : 1.75 mm
Weight : 75.891673 mg
Packaging : Tape and Reel
Thickness : 1.58 mm
Voltage Gain : 95 dB
-3db Bandwidth : 230 MHz
Max I/O Voltage : 1 mV
Max Supply Voltage : 12 V
Number of Channels : 2
Number of Elements : 2
Nominal Supply Current : 12.4 mA
Operating Supply Voltage : 12 V
Min Operating Temperature : -40 °C
Output Current per Channel : 350 mA
Power Supply Rejection Ratio (PSRR) : 95 dB
![]() |

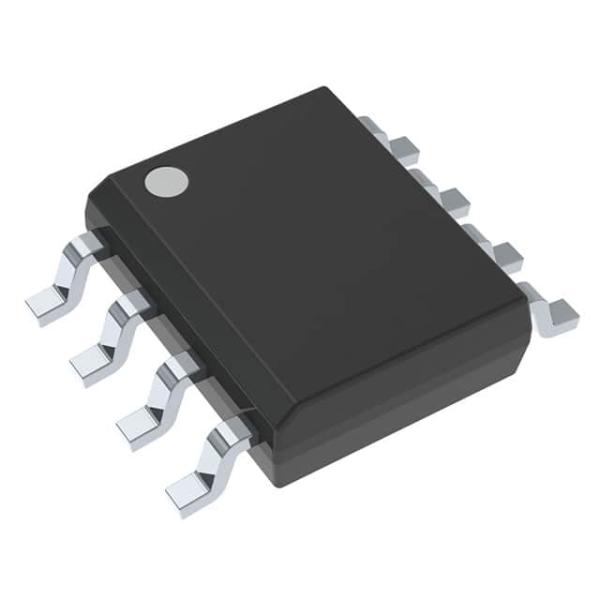

OPA2613IDR Images |
