Part Number : STF15NM60ND
Manufacturer : STMicroelectronics
Description : STF15NM60ND datasheet pdf and Transistors - FETs, MOSFETs - Single product details from STMicroelectronics stock available at Rozee
Lifecycle : New from this manufacturer
Delivery : DHL、UPS、FedEx、Registered Mail
Payment : T/T Paypal Visa MoneyGram Western Union
More Information : STF15NM60ND More Information
ECAD : Request Free CAD Models
Pricing(USD) : $0.00
Remark : Manufacturer: STMicroelectronics. Rozee is one of the Distributors. Wide range of applications.
Mount : Through Hole
Height : 16.4 mm
Fall Time : 28 ns
Rds On Max : 299 mΩ
Number of Pins : 3
Power Dissipation : 30 W
Number of Elements : 1
Turn-Off Delay Time : 47 ns
Max Power Dissipation : 30 W
Min Operating Temperature : -55 °C
Gate to Source Voltage (Vgs) : 25 V
Drain to Source Voltage (Vdss) : 600 V
Products Category : Discrete Semiconductor - Transistors - FETs, MOSFETs - Single
Qty : 399 In Stock
Applications : Wired networking Pro audio, video & signage Mobile phones
Width : 4.6 mm
Length : 10.4 mm
Rise Time : 20 ns
Case/Package : TO-220-3
Input Capacitance : 1.25 nF
Threshold Voltage : 4 V
Turn-On Delay Time : 17 ns
Element Configuration : Single
Max Operating Temperature : 150 °C
Drain to Source Resistance : 299 mΩ
Continuous Drain Current (ID) : 14 A
Drain to Source Breakdown Voltage : 600 V
![]() |

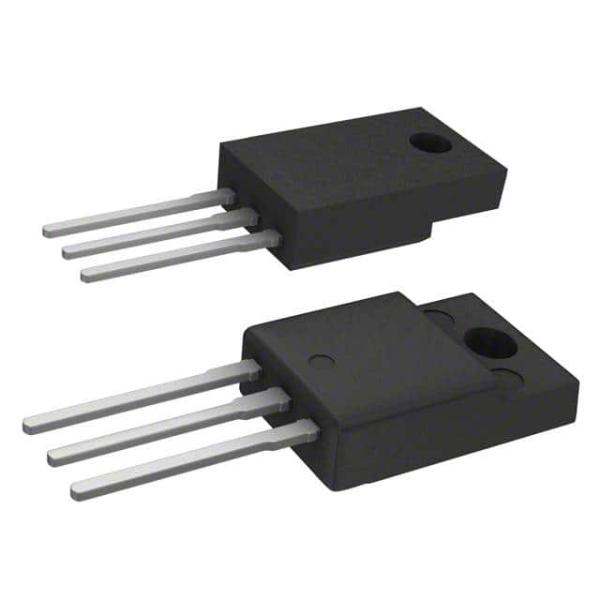

STF15NM60ND Images |
