Part Number :

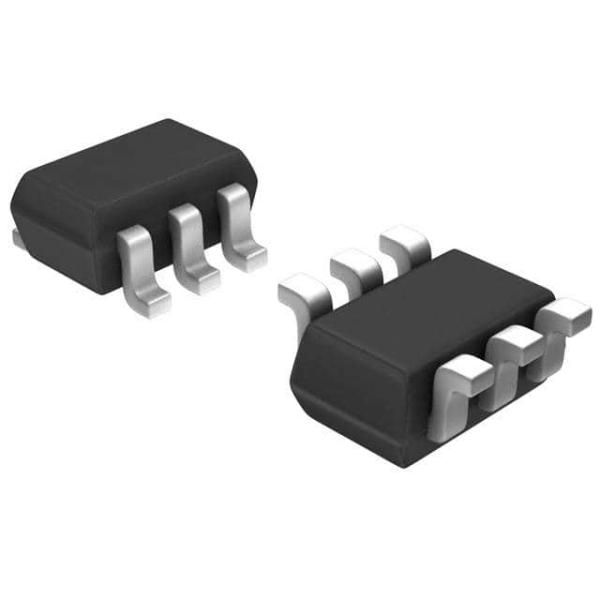

FDG6318PZ
Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Description :
FDG6318PZ datasheet pdf and Transistors - FETs, MOSFETs - Arrays product details from Sanyo Semiconductor/ON Semiconductor stock available at Rozee
Lifecycle :
New from this manufacturer
Delivery :
DHL、UPS、FedEx、Registered Mail
Payment :
T/T Paypal Visa MoneyGram Western Union
More Information :
FDG6318PZ More Information
ECAD :
Request Free CAD Models
Pricing(USD) :
$0.52
Remark :
Manufacturer: Sanyo Semiconductor/ON Semiconductor.
Rozee is one of the Distributors.
Wide range of applications.
Mount :
Surface Mount
Height :
1 mm
Weight :
28 mg
Rise Time :
13 ns
Resistance :
780 MΩ
Case/Package :
SC
Number of Pins :
6
Power Dissipation :
300 mW
Number of Elements :
2
Turn-Off Delay Time :
40 ns
Element Configuration :
Dual
Max Operating Temperature :
150 °C
Drain to Source Resistance :
580 mΩ
Continuous Drain Current (ID) :
-500 mA
Drain to Source Voltage (Vdss) :
-20 V
Products Category :
Discrete Semiconductor - Transistors - FETs, MOSFETs - Arrays
Qty :
6014 In Stock
Applications :
Tablets
Portable electronics
Enterprise machine
Width :
1.25 mm
Length :
2 mm
Fall Time :
13 ns
Rds On Max :
780 mΩ
Schedule B :
8541210080
Current Rating :
-500 mA
Input Capacitance :
85.4 pF
Number of Channels :
2
Turn-On Delay Time :
10 ns
Voltage Rating (DC) :
-20 V
Max Power Dissipation :
300 mW
Min Operating Temperature :
-55 °C
Gate to Source Voltage (Vgs) :
12 V
Max Junction Temperature (Tj) :
150 °C
Drain to Source Breakdown Voltage :
-20 V
